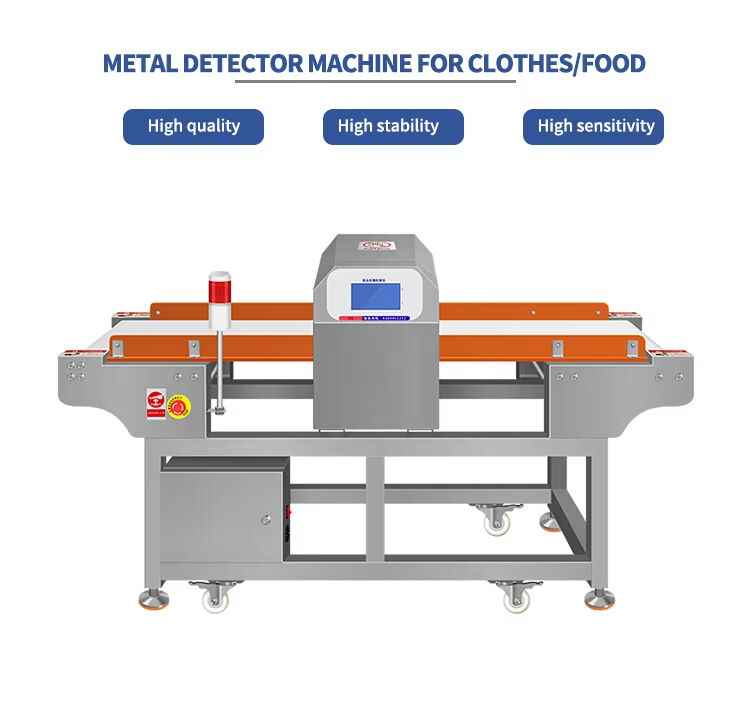

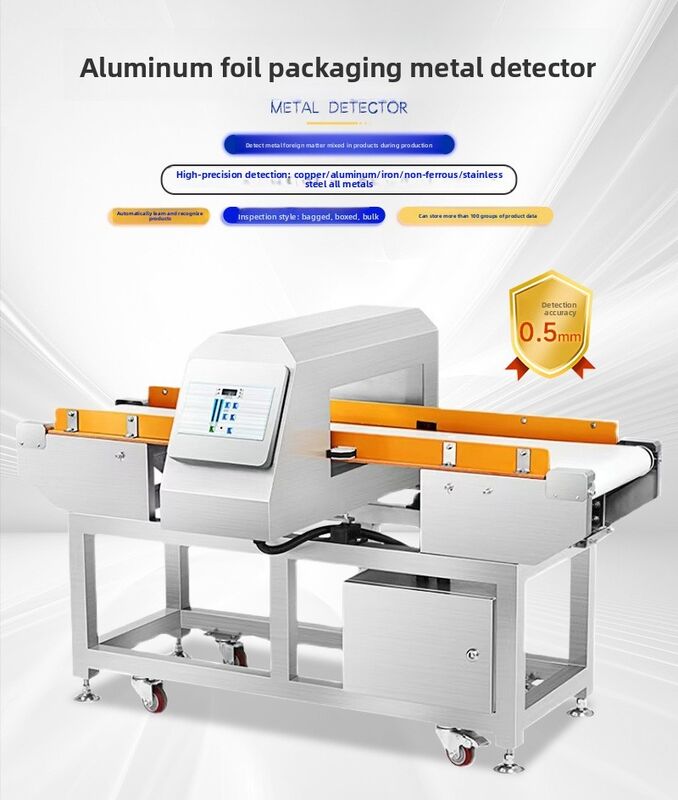

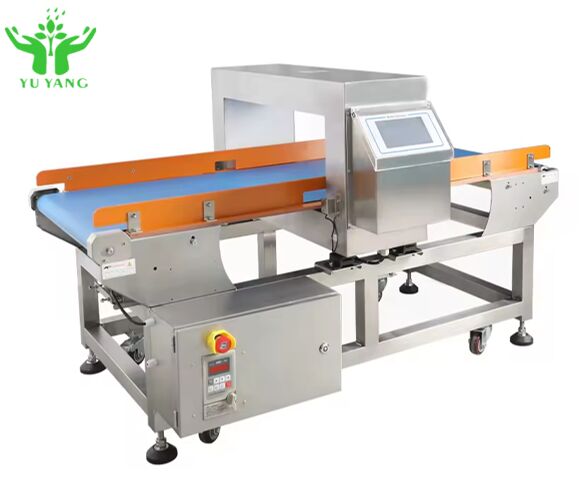

Weight Packing Machine Metal Detector for Food Processing
High sensitivity industrial metal detector with precise location backlight for accurate metal detection in various applications.
Product Specifications
| Material |
Stainless steel |
| Machine Length |
1600mm |
| Model Number |
YY056 |
| Speed of Belt |
25M/min (Fixed speed) |
| Speed of Transmission |
18-40 meter/minute |
| Customized Support |
OEM, ODM, OBM |
| Type |
Laboratory equipment |
| Sample Plate Angle |
0~70° |
| Dimension |
72*53*56cm |
| Test Accuracy |
±2％ |
| Working Speed |
0-18 rotate/min can be adjustable |
| Pressure Source |
Air pressure more than Min.5kg/cm² |
| Size |
Customized |
Applications & Industries
The transmission-type all-digital metal detection machine represents a new generation of microcomputer-based intelligent metal detection equipment. It offers high sensitivity and stable performance. By overcoming the technical limitation found in most devices--which primarily respond sensitively only to magnetic substances--this machine delivers excellent detection performance for moisture-containing and frozen products. Capable of detecting both ferrous and non-ferrous metals, it is widely applicable for metal detection in demanding applications such as food, pharmaceuticals, and toys.
Primary Use Cases
This equipment is primarily used for applications such as sauces, sausages, dumplings, ham, soup, sugar products, pickled foods, salted foods, fast food, and other non-food industries. It features high detection sensitivity, strong anti-interference capability, and a waterproof rating suitable for demanding working conditions. It can detect foreign metal contaminants--including broken or lost needles, wires, lead, copper, aluminium, tin, stainless steel, and other types of metal--present in food, raw materials, or finished products.
Key Features
- Dual-circuit electromagnetic wave detection with analog and digital circuit combination for enhanced sensitivity and reliability
- New type of touch screen input with large scale integrated circuit improves detection intelligence
- User-friendly interface design with multi-language operation and clear human-machine interface
- Dynamic zero point voltage tracking with automatic learning detection function
- Wide adjustable range of sensitivity with reverse detection function
- Sound, light and alarm activation when metal is detected with option to stop machine or reject products
Technical Parameters
| Detected Height (mm) |
Belt Width (mm) |
Detector Sensitivity Fe (mm) |
Detector Sensitivity SUS (mm) |
Detector Sensitivity N-Fe (mm) |
| 80 |
250 |
0.8 |
1.0 |
1.0 |
| 100 |
250 |
1.0 |
2.0 |
1.5 |
| 150 |
400 |
1.2 |
2.5 |
2.0 |
| 200 |
400 |
1.5 |
2.5 |
2.0 |
| 250 |
400 |
2.0 |
3.0 |
2.5 |
| 300 |
400 |
2.5 |
3.5 |
3.0 |
| 350 |
400 |
3.0 |
4.0 |
3.5 |
Additional Specifications
Speed of Belt: 25M/min (Fixed speed); Adjustable 5-40 M/min available
Load Capacity: 20KG
Count: 100
Warning Method: Sound and light alarm with multiple belt control options

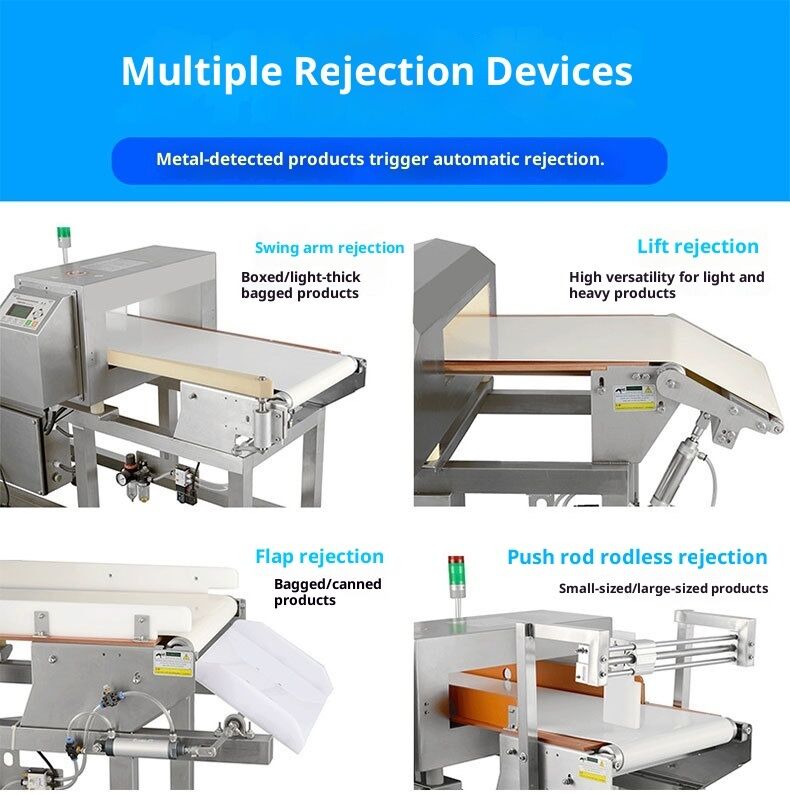

Reject System: Auto-reject with continuous belt operation
Application: Non-package, plastic package, paper bag or box (non-metallic) products
Work Environment: Temperature -10℃-40℃, relative humidity 30-90%
Advanced Technology Features
- Balance theory implementation for enhanced reliability
- Phase-adapted technology to effectively eliminate product effect
- Self-learning function for automatic digital learning and storage of product features
- Easy operation without manual adjustment of technical parameters
