Name: Industrial Metal Detector Machine Wet and Dry Food Metal Detector with High Sensitivity for Various Applications
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY056
Price: 2,574.00 USD
Availability: InStock

Do domu > produkty > Urządzenia do testowania tekstyliów >

Industrial Metal Detector Machine Wet and Dry Food Metal Detector with High Sensitivity for Various Applications

Industrial metal detector machine

Food metal detector high sensitivity

Wet dry food metal detector

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

YUYANG

Orzecznictwo:

Numer modelu:

YY056

Skontaktuj się z nami

Poprosić o wycenę

Szczegóły produktu

Wykryta wysokość (mm):

300

Szerokość paska (mm):

400

Długość paska:

1500

Czułość detektora (mm):

Fe 1,0 mm SUS 2,0 mm N-Fe 1,5 mm

Prędkość paska:

25 M/min (stała prędkość); Jeśli potrzebujesz regulacji 5-40 M/min, poinformuj nas o tym przed złoże

Umiejętność ładowania:

20 kg

Liczyć:

100

Metoda ostrzegawcza:

Alarm dźwiękowy i świetlny; Taśma może zostać zatrzymana, kontynuowana lub zwrócona (opcję można wyb

Odrzuć sposoby:

brak systemu automatycznego odrzucania, taśma kontynuuje i odrzuca towar

Aplikacja:

Produkt nieopakowany, opakowanie plastikowe, torba papierowa lub pudełko (niemetalowe).

Środowisko pracy:

Temperatura -10 ℃ -40 ℃, względna pokora 30-90%

Podkreślić:

Industrial metal detector machine

Food metal detector high sensitivity

Wet dry food metal detector

Warunki płatności i wysyłki

Minimalne zamówienie

1 szt

Cena

$2350-$2798

Czas dostawy

7-30 dni

Zasady płatności

T/T

ZAŁĄCZONE PRODUKTY

Wideo

Professional Industrial Metal Detector High Sensitivity Metal Detector Machine for Food

Najlepszą cenę

Wideo

Food Grade Metal Detector With Sound and Light Alarm Reject System for Quality Control

Najlepszą cenę

Wideo

Automatic Industrial Metal Detector Machine for Food Processing Industry X-ray Foreign Object Detector

Najlepszą cenę

Wideo

Industrial Metal Detector Machine Wet and Dry Food Metal Detector with High Sensitivity for Various Applications

Najlepszą cenę

Skontaktuj się z nami

8618938165008

sales11@yuyangtest.com

86-769-26622869

Skontaktuj się teraz

Opis produktu

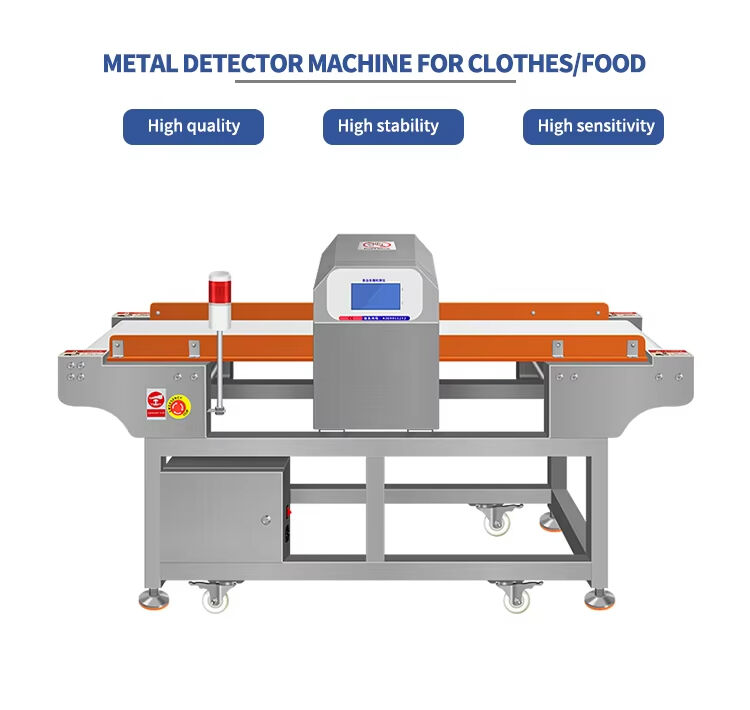

Industrial Metal Detector Machine

High-sensitivity wet and dry food metal detector designed for various industrial applications with exceptional detection capabilities.

Product Specifications

Attribute	Value
Material	Stainless steel
Machine Length	1600mm
Model Number	YY056
Speed of Belt	25M/min (Fixed speed)
Speed of Transmission	18-40 meter/minute
Customized Support	OEM, ODM, OBM
Type	Laboratory equipment
Sample Plate Angle	0~70°
Dimension	725356cm
Test Accuracy	±2％
Working Speed	0-18 rotate/min can be adjustable
Pressure Source	Air pressure more than Min.5kg/cm²
Size	Customized

Application

Transmission type all-digital metal detection machine is a new generation of microcomputer intelligent metal detection equipment. The product features high sensitivity and stable performance, breaking through technical limitations that typically only respond sensitively to magnetic substances. Excellent elimination performance for products with moisture and frozen products. Detects both ferrous and non-ferrous metals, widely used for metal detection in demanding applications including food, pharmaceuticals, and toys.

Use Cases

Primarily used for: sauces, sausages, dumplings, ham, soup, sugar products, pickled foods, salted foods, fast food and other non-food industries. Features high detection sensitivity, anti-interference capability, and waterproof standards for demanding working conditions. Detects mixed or lost needles, wires, or lead, copper, aluminium, tin, stainless steel and other metal contaminants in food, raw materials, or finished products.

Key Features

Double circuit electromagnetic wave detection with combined analog and digital circuits for enhanced sensitivity and reliability

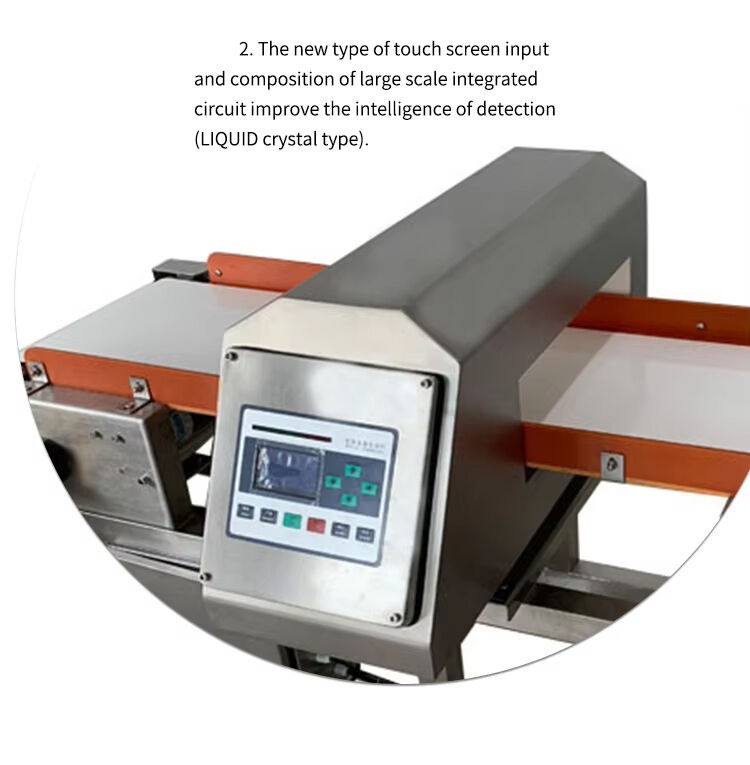

Touch screen input with large-scale integrated circuits for improved detection intelligence (LCD display)
User-friendly interface design with multi-language operation and clear human-machine interface
Dynamic zero point voltage tracking with automatic learning detection function reduces operator requirements
Wide adjustable sensitivity range with reverse detection function (no alarm for metal products)
Simultaneous sound, light, and alarm activation when metal is detected, with option to stop machine or reject unqualified products

Technical Parameters

Detected Height (mm)	80	100	150	200	250	300	350
Belt Width (mm)	250	250	400	400	400	400	400
Belt Length	1500
Detector Sensitivity (mm) Fe	0.8	1.0	1.2	1.5	2.0	2.5	3.0
Detector Sensitivity (mm) SUS	1.0	2.0	2.5	2.5	3.0	3.5	4.0
Detector Sensitivity (mm) N-Fe	1.0	1.5	2.0	2.0	2.5	3.0	3.5

Additional Specifications

Speed of belt: 25M/min (Fixed speed); Adjustable range 5-40 M/min available upon request

Load capacity: 20KG

Count: 100

Warning method: Sound and light alarm; Belt can be stopped, continue running, or return (selectable in PLC controller)

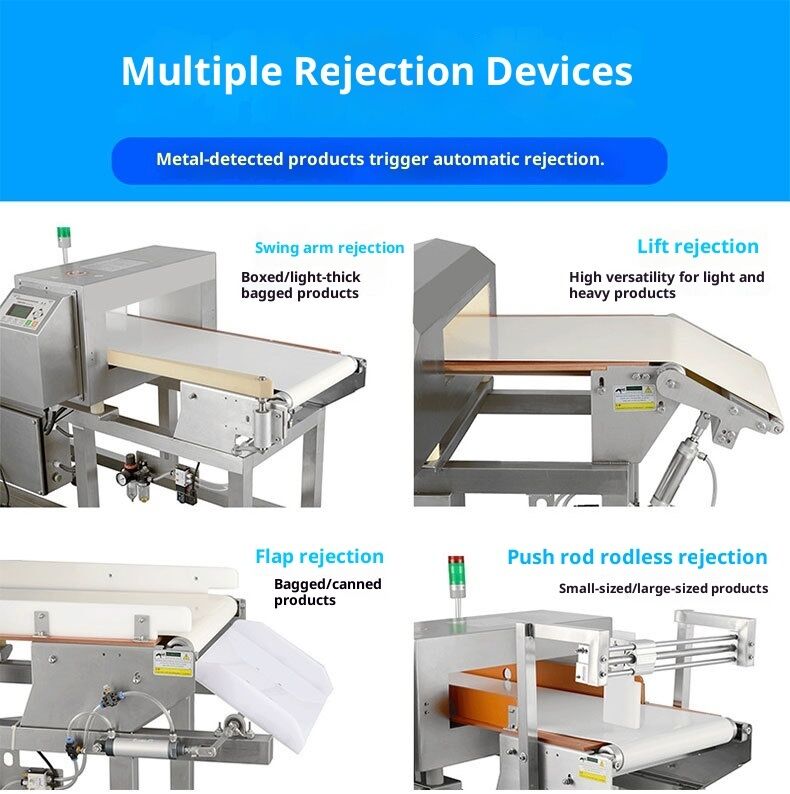

Reject method: When equipped with auto-reject system, belt continues while rejecting contaminated goods

Application: Non-package, plastic package, paper bag or box (non-metallic) products

Work environment: Temperature -10℃ to 40℃, relative humidity 30-90%
