Name: Induction Heating Equipment Welding Machine Metal Welding High Frequency Quenching Stove
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYSQ-TC-200AB
Price: 2000 USD
Availability: InStock

Do domu > produkty > Zestaw do testów elektrycznych >

Induction Heating Equipment Welding Machine Metal Welding High Frequency Quenching Stove

induction heating welding machine

high frequency quenching stove

metal welding equipment with warranty

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

YUYANG

Orzecznictwo:

Numer modelu:

YYSQ-TC-200AB

Skontaktuj się z nami

Poprosić o wycenę

Szczegóły produktu

Max wahają się moc:

200KW

Moc robocza:

340 V-430 V

Maksymalny prąd wejściowy:

300A

Moc wyjściowa:

200KW

Zmienna częstotliwość:

5-20 kHz

Natężenie przepływu wody chłodzącej:

0,08-0,16 MPa 12 l/min

punkt ochrony temperatury wody:

50c

Rozmiar produktu:

870*550*1610MM

Waga netto:

185 kg

Podkreślić:

induction heating welding machine

high frequency quenching stove

metal welding equipment with warranty

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

$2000

Szczegóły pakowania

pudełko ze sklejki

Czas dostawy

5-10 dni roboczych

Zasady płatności

T/T, akredytywa, Western Union

Możliwość Supply

200 zestawów miesięcznie

ZAŁĄCZONE PRODUKTY

Wideo

Customized Automatic Magnet Wire Winding Machine for Metal & Metallurgy Coiling Process

Najlepszą cenę

Wideo

New Condition Portable Induction Heater Machine for Steel Pipes Features Split Core Inductor IGBT Stainless Steel MIG Welders

Najlepszą cenę

Wideo

Portable 220V HF Induction Heating Welding Machine with PLC Factory Price for Metal Manufacturing Plant

Najlepszą cenę

Wideo

YY Electric Induction Ring Heating Element Mica Extruder Band Heater for Plastic Machine

Najlepszą cenę

Skontaktuj się z nami

8613265296009

sales13@yuyangtest.com

86-769-26622869

Skontaktuj się teraz

Opis produktu

Induction Heating Equipment Welding Machine

High-frequency induction heating equipment for metal welding, quenching, and heat treatment applications with advanced IGBT technology.

Key Characteristics

Advanced IGBT inverting technology with automatic frequency tracking
High-frequency heating with rapid operation - consumes only 20-30% of traditional electronic tube systems
Secure voltage operation with enhanced safety features
Manual and automatic regulation with comprehensive protection systems
Environmentally friendly operation - no open flame, noise, or pollution emissions
Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing

Advanced Technology Features

Our high-frequency induction heating machines incorporate state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. The technology enables non-contact heating through non-metallic materials until metal fusion occurs, providing safe, economical, and pollution-free technical solutions.

Operational Advantages

Portable Design

Integrated construction saves over 80% space and 75% weight compared to traditional transformers. Monolithic shell design with resistance to weak acids and alkalis.

Complex Metal Heating

Hand-held machine head with amorphous magnetic core material provides wider frequency range and superior heating for irregular shaped workpieces.

Efficient Operation

Rapid heating within 8 seconds, intelligent operation with stable magnetic field output for consistent long-term performance. Ideal for copper pipe welding and complex transformer applications.

Technical Specifications

Model	YYSQ-TC-200AB (Three phase)
Work Power	340V-430V
Maximum Input Current	300A
Output Power	200KW
Fluctuating Frequency	5-20KHZ
Cooling Water Flow Rate	0.08-0.16Mpa 12L/Min
Water Temperature Protection	50°C
Main Unit Dimensions	870×550×1610mm
Transformer Dimensions	920×520×630mm
Main Unit Weight	185kg
Transformer Weight	125kg

Industrial Applications

Brazing Materials: Copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper, and other metal brazing applications
Welding: Glasses, fishing tools, hardware appliances, carbide saws and teeth, carbide blades, jewelry, watches
Electronic Industry: Motor rotor hot-cooperation, electrode silver and tin soldering
Specialized Applications: Metal implants, bulb electrode fabrication, band accessories, golf heads, pipe welding
Communication Equipment: Copper coaxial cable connector soldering and related applications

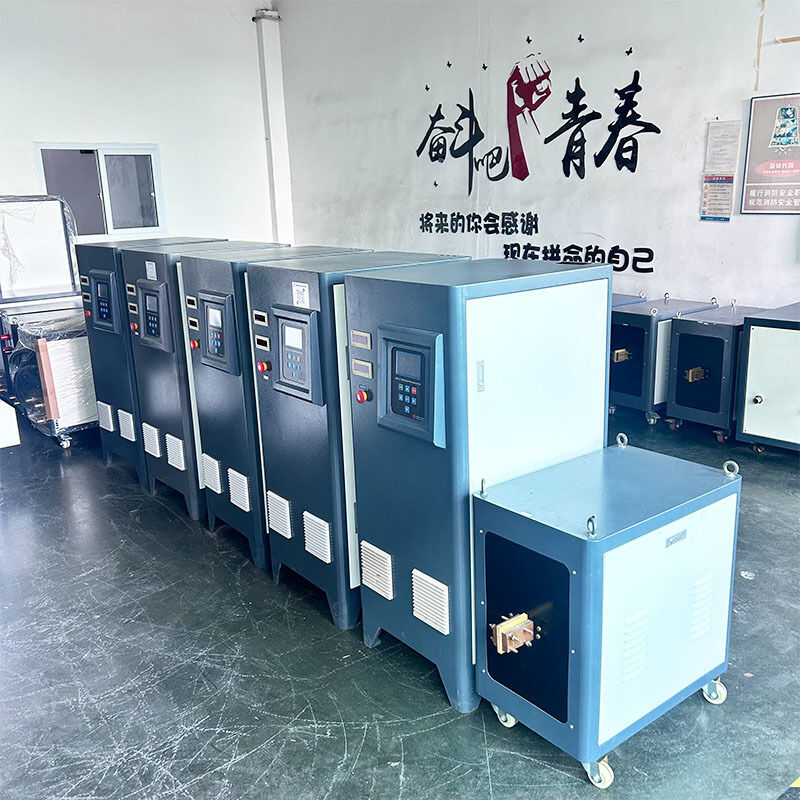

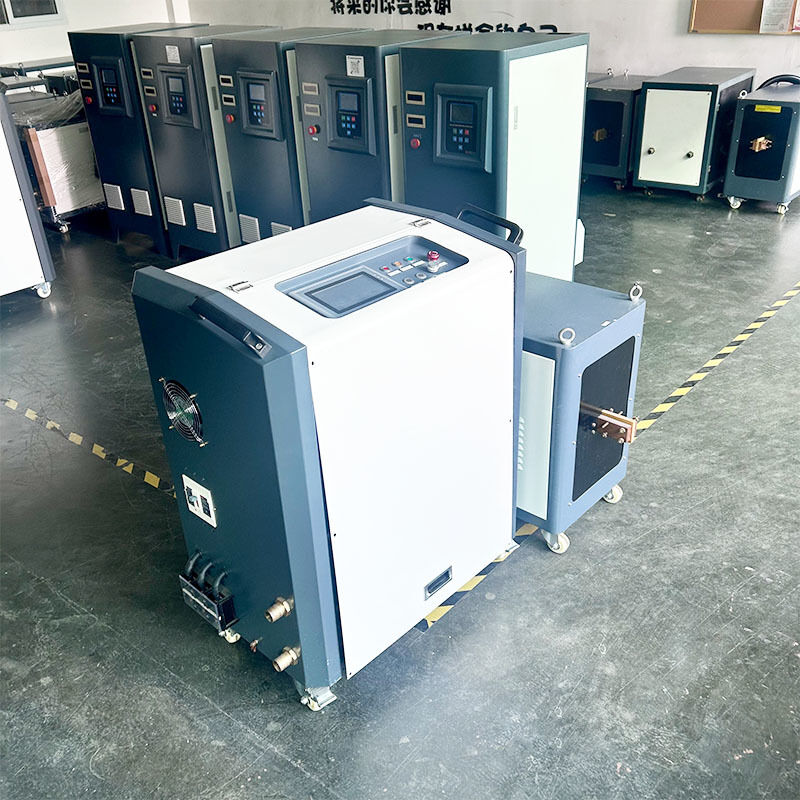

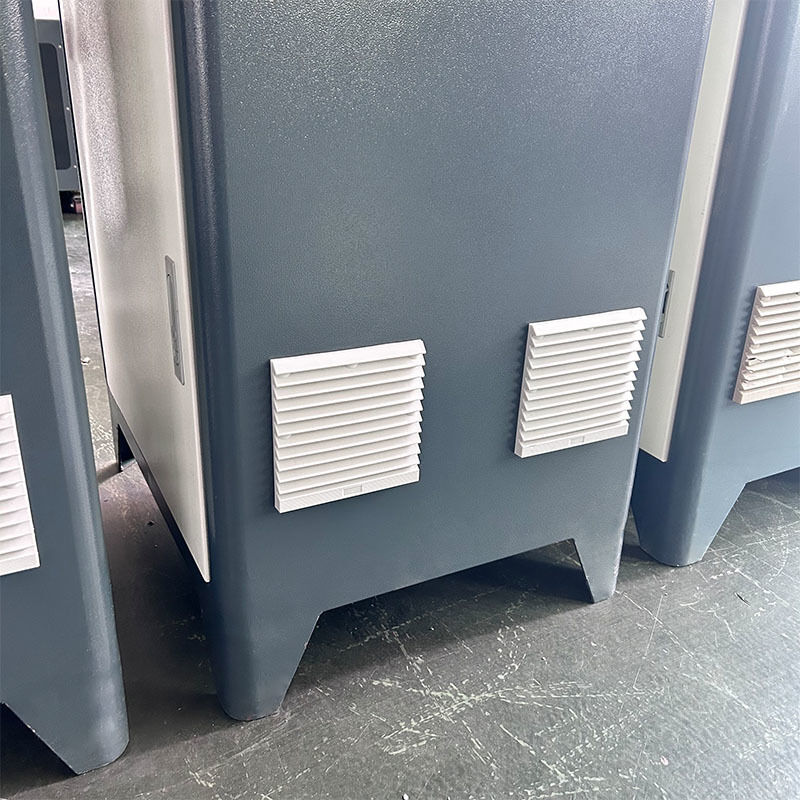

Product Images

Manufacturer Information

Based in Guangdong, China, established in 2018. Serving global markets with a team of 11-50 professionals.

Quality Assurance

Pre-production sampling before mass production
Final inspection prior to shipment

Business Services

Delivery Terms: FOB, CFR, CIF, EXW
Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY
Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Languages: English, Chinese
