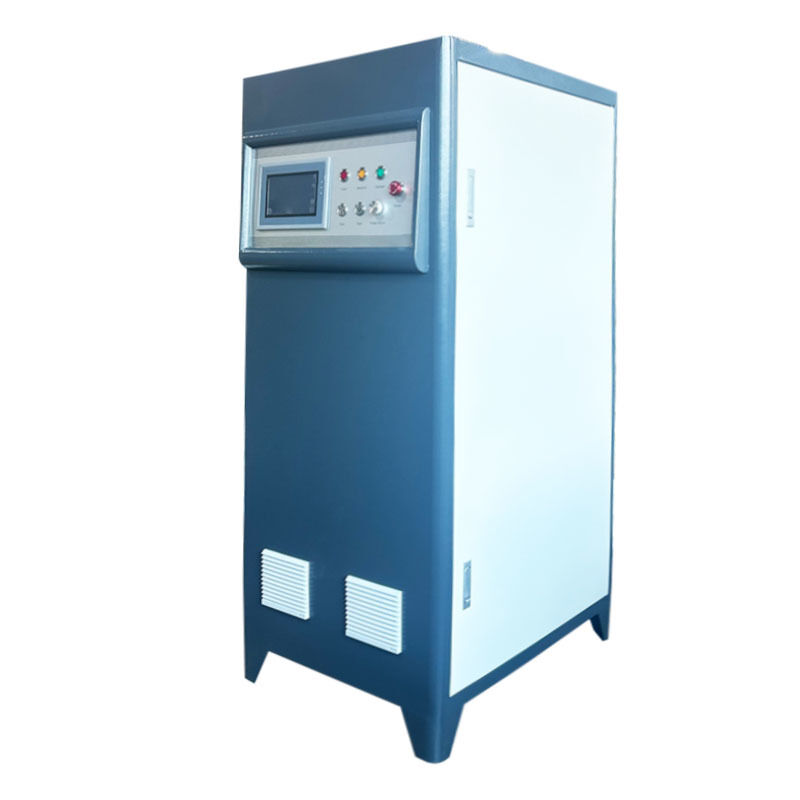

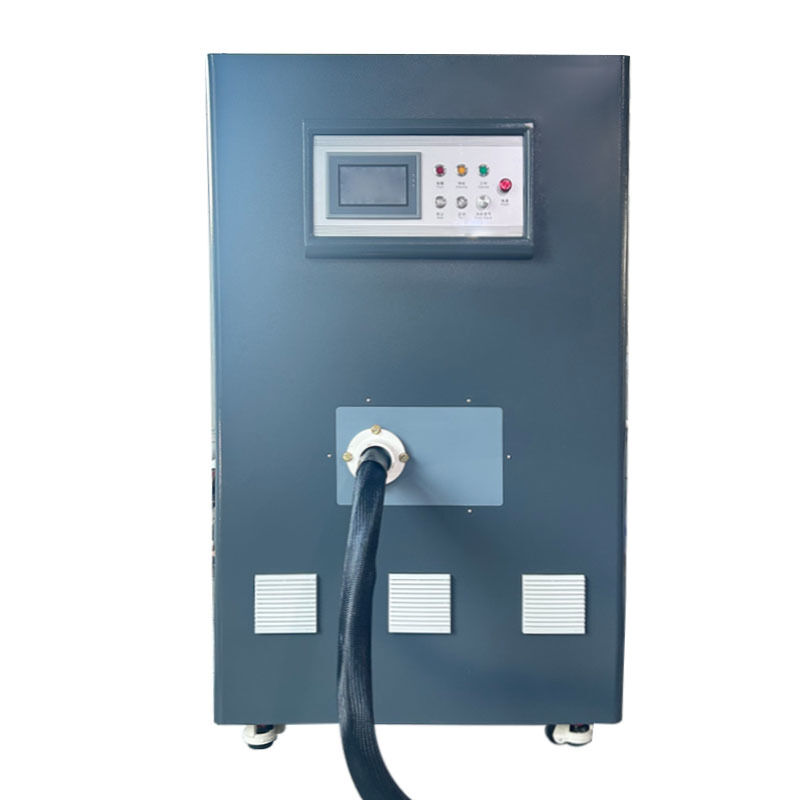

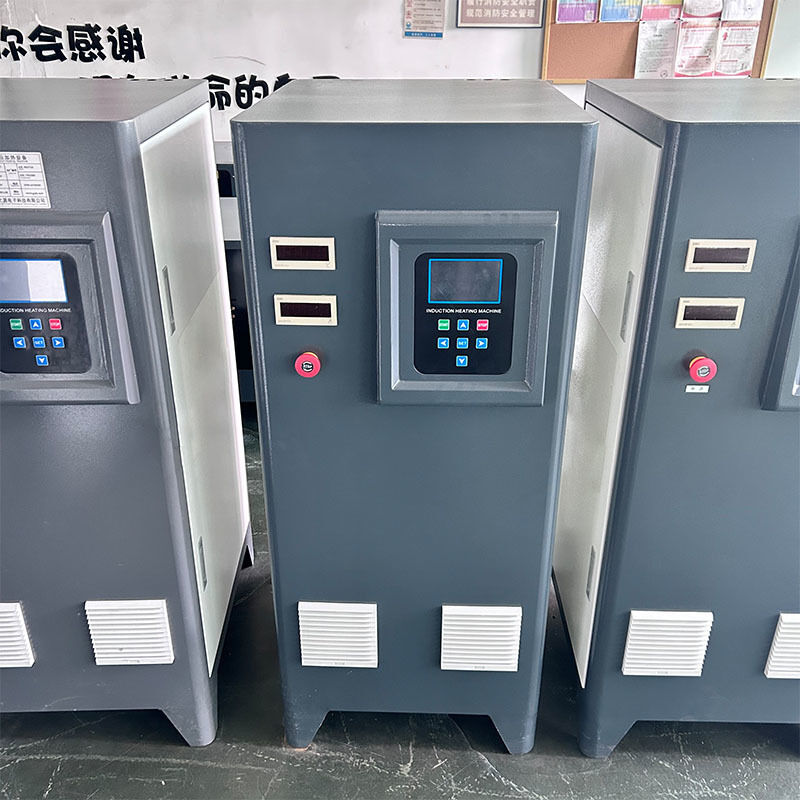

High Frequency Welding Machine Quenching Equipment
Customized 70KW Induction Heating Equipment by CN;GUA Yuyang
Key Characteristics
- Advanced IGBT inverting device with automatic frequency tracking
- High-frequency operation for rapid heating with only 20-30% power consumption compared to electronic tube induction heating
- Secure voltage operation with enhanced safety features
- Manual and automatic regulation with comprehensive protection against over voltage, over current, water shortage, phase failure, and overheating
- Environmentally friendly operation with no open flame, noise, or pollution
- Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing applications
Advanced Features
Our High Frequency Induction Heating Machine incorporates the most advanced electrical components and innovative techniques. It enables rapid, localized metal heating and can penetrate non-metal materials to heat metals to fusion temperatures without direct contact, providing safe, economical, and pollution-free technical solutions.
Operational Advantages
- Portable design: Integrated construction saves over 80% space and 75% weight compared to traditional transformers
- Versatile heating: Hand-held machine head with amorphous magnetic core material handles complex, irregular-shaped workpieces effectively
- Efficient operation: Rapid heating within 8 seconds with stable magnetic field output for consistent performance
- Durable construction: Monolithic shell design resistant to weak acids and alkalis
- Intelligent operation: Ideal for air conditioning, refrigerator industry copper pipe welding, and complex transformer applications
Technical Specifications
| Model |
YYS-25AB (Three phase) |
| Work Power |
340v-430v |
| Maximum Input Current |
42A |
| Output Power |
25kw |
| Fluctuating Frequency |
10-50khz |
| Output Current |
200-1800A |
| Cooling Water Flow & Pressure |
0.08-0.16Mpa 9L/Min |
| Water Temperature Protection |
50°C |
| Product Dimensions |
Main: 640x280x550 mm
Transformer: 510x260x410 mm |
| Net Weight |
Main: 37.5 kg
Transformer: 32.5 kg |
Application Areas
- Brazing applications: Copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper brazing
- Glasses welding, fishing tool welding, hardware appliances welding
- Carbide saw and saw-tooth welding, carbide blade welding
- Jewelry and watches welding
- Electronic industry: Motor rotor hot-cooperation, electrode silver and tin soldering
- Metal implants, bulbs electrode fabrication
- Band accessory soldering, golf head manufacturing, pipe welding
- Communication equipment soldering, copper coaxial cable connector soldering
Company Information & Quality Assurance
About Our Company
Based in Guangdong, China since 2018, we serve global markets including South Asia (20%), Eastern Asia (20%), Domestic Market (15%), Southeast Asia (15%), Eastern Europe (10%), North America (10%), Oceania (5%), and Western Europe (5%) with a dedicated team of 11-50 professionals.
Quality Guarantee
- Pre-production samples provided before mass production
- Final inspection conducted before shipment
Product Range
We specialize in Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, and Wire and Cable Test Machines.
Why Choose Us
As a high-tech enterprise, we focus on developing and manufacturing specialized testing equipment including Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.
Service Details
Delivery Terms: FOB, CFR, CIF, EXW
Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY
Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Languages: English, Chinese
