Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester

Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester

cone calorimeter flammability tester

heat release rate testing equipment

electronic flammability testing machine

Miejsce pochodzenia:

Guangdong, Chiny

Nazwa handlowa:

YUYANG

Numer modelu:

YYF003

Skontaktuj się z nami
Poprosić o wycenę
Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester
Szczegóły produktu
Zakres pomiarowy:
0-25%
Wyjście sygnału:
4-20mA
Czas reakcji:
≤2S
Temperatura otoczenia:
0-45 ℃
WILGOTNOŚĆ WZGLĘDNA:
<90% (bez kondensacji)
Liniowość:
<± 0,1% O2
Zero Drift:
0,05% O2 (jeden tydzień)
Powtarzalność:
<± 0,02% O2
Moc grzejnika:
5000 W
Moc cieplna:
100 kW/m2
Dokładność ogniwa obciążeniowego:
0,01 g
Zakres przepływu spalin:
0-50 g/s
Rozdzielczość przepływu spalin:
0,1 g/s
Nominalny przepływ spalin:
24 l/s
Zakres analizatora tlenu:
0-25%
Podkreślić:

cone calorimeter flammability tester

,

heat release rate testing equipment

,

electronic flammability testing machine

Warunki płatności i wysyłki
Minimalne zamówienie
1
ZAŁĄCZONE PRODUKTY
Dobra cena. BS 476 Part 7 Building Material Surface Flame Spread Test Apparatus Electronic w Internecie

BS 476 Part 7 Building Material Surface Flame Spread Test Apparatus Electronic

Najlepszą cenę
Dobra cena. 16 CFR Part 1611 SPI Flammability Testing Equipment Electronic Fire Testing Machine w Internecie

16 CFR Part 1611 SPI Flammability Testing Equipment Electronic Fire Testing Machine

Najlepszą cenę
Dobra cena. ISO 834 BS 476 Part 20&22 Building Materials and Structures Vertical Fire Resistance Test Furnace w Internecie

ISO 834 BS 476 Part 20&22 Building Materials and Structures Vertical Fire Resistance Test Furnace

Najlepszą cenę
Dobra cena. Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester w Internecie

Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester

Najlepszą cenę
Skontaktuj się z nami
+86-13825722581
jackson.sun@yuyangtest.com
86-769-26622869
Skontaktuj się teraz
Opis produktu

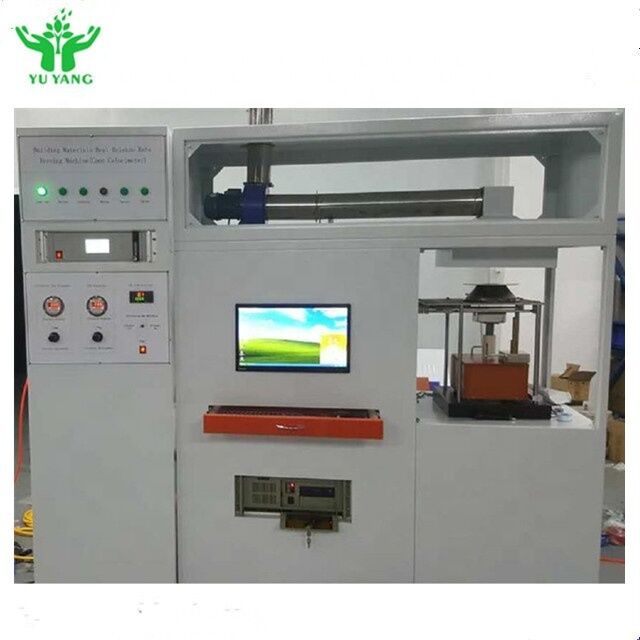

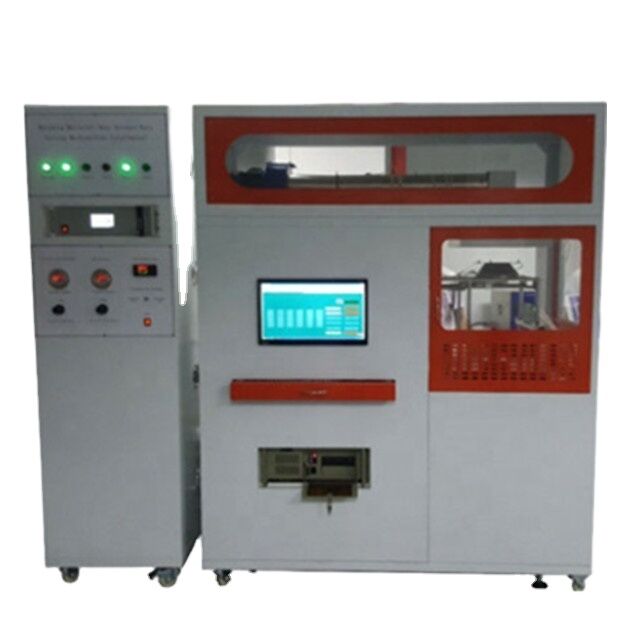

Cone Calorimeter Heat Release Rate Flammability Testing Equipment
Advanced electronic testing equipment for measuring heat release rate and flammability characteristics of materials according to international standards.
Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester 0 Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester 1 Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester 2 Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester 3 Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester 4 Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester 5 Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester 6
Product Overview
The Cone Calorimeter represents the most significant bench-scale instrument in fire testing technology. This equipment measures heat release rate, which is crucial for assessing fire development in materials and products using oxygen depletion calorimetry.
Applications
Measures combustion product stream oxygen concentration to calculate heat release rate through oxygen consumption. Accurate measurement of material heat release during combustion is essential for predicting fire hazards and developing effective fire-retardant treatments.
Compliance Standards
  • ISO 5660: Reaction-to-fire tests - Heat release, smoke production and mass loss rate
  • ASTM E1354: Standard Test Method for Heat and Visible Smoke Release Rates
  • BS 476: PART 15: Method for measuring the rate of heat release of products
  • GB/T 16172-2007: Test method for heat release rate of building materials

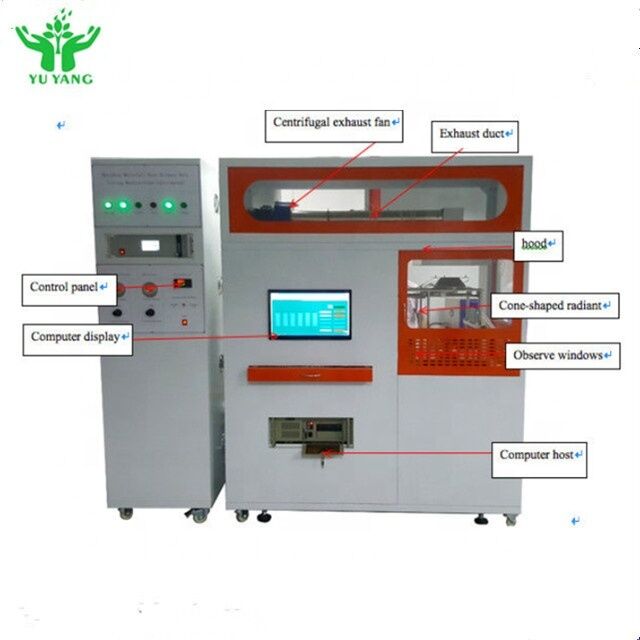

System Components
  • Conical Heater: 5000W rated, 230V with 100 kW/m² heat output
  • Testing Orientation: Horizontal and vertical specimen testing capability
  • Temperature Control: 3 type K thermocouples with PID temperature controller
  • Split Shutter Mechanism: Protects sample area and ensures stable initial mass measurement
  • Specimen Holders: Accommodates 100mm x 100mm specimens up to 50mm thick
  • Load Cell: Strain gauge with 0.01g accuracy and electronic tare facility
  • Spark Ignition: 10 kV generator with safety cut-out and automatic positioning
  • Exhaust System: Stainless steel construction with adjustable flow controls (0-50g/s)
  • Gas Sampling: Complete system with filters, cold trap, pump, and drying columns
  • Oxygen Analysis: Paramagnetic oxygen analyzer (0-25% range)
  • Smoke Obscuration: Laser system with photodiodes and calibration filters
  • Heat Flux Meter: For setting specimen surface irradiance levels
  • Calibration Burner: Methane calibration system (99.5% purity)
  • Data Acquisition: Agilent system with 22-bit DMM and 250 channels/s scan rate
  • ConeCalc Software: Multi-language Windows-based interface with comprehensive data management
Technical Specifications
Measuring Range 0-25%
Signal Output 4-20mA
Response Time ≤2S
Ambient Temperature 0-45 ℃
Relative Humidity <90% (non-condensing)
Zero Drift 0.05% O2 (one week)
Optional Accessories
  • Carbon Dioxide and Carbon Monoxide NDIR gas analyzers
  • Hydrogen Chloride analysis with heated supply lines
  • Controlled Atmosphere Attachment for low oxygen analysis
  • Mass Loss Calorimeter
  • FTIR Toxicity Test System
  • Protection Doors for operator safety
Packaging & Transportation
Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester 7
Manufacturer Information
DONGGUAN YUYANG INSTRUMENT CO., LTD is a high-tech enterprise located in Wanjiang District, Dongguan City, Guangdong Province, China. Specializing in developing and manufacturing fire testing equipment, building material testers, environmental test chambers, and various testing instruments for multiple industries including automotive, electronics, aerospace, and construction.
Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester 8 Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester 9 Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester 10
Certifications
Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester 11 Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester 12

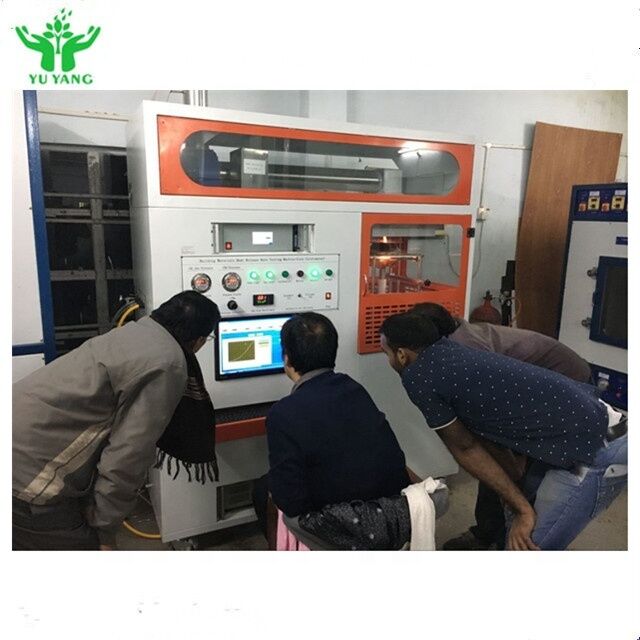

Customer Feedback
Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester 13
Frequently Asked Questions
Company Background
Based in Guangdong, China since 2018, serving global markets including Southeast Asia, Eastern Asia, Europe, North America, and domestic Chinese market.
Quality Assurance
Pre-production sampling and final inspection before shipment ensure consistent product quality.
Product Range
Specialized in Testing Equipment, Tensile Testing Machines, Environmental Test Chambers, Fire Testing Equipment, and Induction Heating Machines.
Competitive Advantage
High-tech enterprise with decades of R&D experience in developing cost-effective testing equipment compliant with international standards.
Service Support
Comprehensive delivery terms (FOB, CFR, CIF, etc.), multiple payment options (T/T, L/C, Credit Card, PayPal), and multilingual support in English and Chinese.
