Name: ASTM D2843 Smoke Density Test Apparatus For Building Material
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF011
Price: 25,000.00 USD
Availability: InStock

Do domu > produkty > Urządzenia do badania palności >

ASTM D2843 Smoke Density Test Apparatus For Building Material

ASTM D2843 smoke density tester

building material flammability tester

smoke density test apparatus

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

YUYANG

Orzecznictwo:

Numer modelu:

YYF011

Skontaktuj się z nami

Poprosić o wycenę

ASTM D2843 Smoke Density Test Apparatus For Building Material

Szczegóły produktu

Źródło gazu:

95% gazu propanu lub gazu o tej samej czystości (dostarczany przez klienta)

Zakres pomiaru gęstości dymu:

0 ~ 100%

Dokładność pomiaru gęstości dymu:

± 3%

Ogniskowa po leczeniu:

60 ~ 65 mm

Główny presja robocza palnika:

276 kPa (regulowane)

Ciśnienie palnika pomocniczego:

138 kPa (regulowane)

Wymiary całkowite:

L810 X W490 X H900 (mm)

Działający zasilacz:

AC220 V, 50 Hz; Całkowita moc: 500 W

Temperatura:

25 ℃ ~ 35 ℃.

Dopuszczalny zakres wahań częstotliwości:

50 Hz ± 1%.

Podkreślić:

ASTM D2843 smoke density tester

building material flammability tester

smoke density test apparatus

Warunki płatności i wysyłki

ZAŁĄCZONE PRODUKTY

BS476-6 Building Materials Flammability Testing Equipment 530J/S 1kPa

Najlepszą cenę

Wideo

Urządzenie do badania gęstości dymu w przypadku spalania lub rozkładu materiałów budowlanych

Najlepszą cenę

High-Precision Tester: Glass/Metal/Plastic 3/4-Point Bending, Tensile & Compression

Najlepszą cenę

EN ISO 11925-2 Aparatura do badania zapalności materiałów budowlanych

Najlepszą cenę

Skontaktuj się z nami

8613825729462

sales03@yuyangtest.com

86-769-26622869

Skontaktuj się teraz

Opis produktu

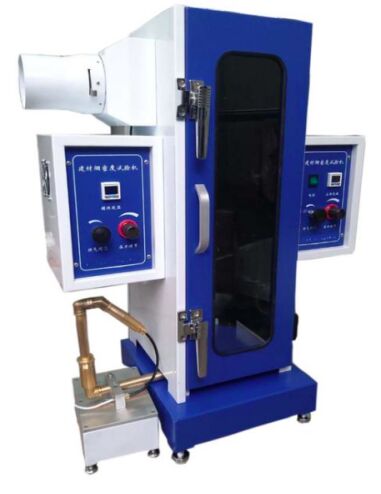

ASTM D2843 Smoke Density Test Apparatus For Building Material

Building Material Burning or Decomposition Smoke Density Test Apparatus

Product Specifications

Attribute	Value
Gas source	95% propane gas, or gas of the same purity (customer-supplied)
Smoke density measurement range	0~100%
Smoke density measurement accuracy	± 3%
Focal length after treatment	60~65 mm
Main burner working pressure	276 KPa (adjustable)
Auxiliary burner pressure	138KPa (adjustable)
Overall dimensions	L810 x W490 x H900 (mm)
Working power supply	AC220 V, 50 Hz; total power: 500 W
HS CODE	9031809090
PC	Not included

Product Description

The Building Material Burning or Decomposition Smoke Density Test Apparatus is designed for determining static smoke content when building materials and other solid materials are burned.

Applications

It is applicable to the determination of static smoke content when building materials and its products are burned. It can also be used for the determination of static smoke content when other solid materials are burned.

Standards Compliance

Meets GB/T8627, ASTM D2843 standard requirements.

Technical Parameters

Parameter	Specification
Gas source	95% propane gas, or gas of the same purity (customer-supplied)
Burning lamp	Length: 260mm, nozzle diameter: 0.13mm, 45° angle with smoke case
Photoelectric system	15W bulb light source, 6V working voltage
Exhaust system	Equipped with powerful exhaust fan for post-test ventilation
Receiver	Silicon photocell with 0-100% light transmittance range
Function	Automatic timing, ignition, smoke exhaust; luminous flux auto-correction
Computer control	Includes light transmittance measurement software with curve report output
Focal length after treatment	60~65 mm
Auxiliary burner pressure	138kpa
Working power supply	AC220 V, 50 Hz; total power: 500 W

Equipment Structure

Consists of combustion box and computer control system
Burning chamber dimensions: L300 x W300 x H790 (mm)
Combustion box made of high-quality non-steel plate, CNC machined
Internal components made of high-quality stainless steel for excellent rust resistance

Operating Conditions

Flat, well-ventilated area free of flammable/explosive/corrosive gases
No strong electromagnetic radiation sources nearby
Adequate maintenance space around equipment
Temperature: 25℃ ~ 35℃
Power supply: AC220V/50HZ with ±10% voltage fluctuation allowance
Frequency allowance: 50Hz±1%
Requires dedicated air/power switch of appropriate capacity

Key Features

Dual control mode (touch screen or computer)
Multiple computers can operate one device simultaneously with LAN sharing
Automatic rotation and precise positioning of main/auxiliary burners
Custom control programs for comprehensive test operations and reporting

Manufacturer Information

DONGGUAN YUYANG INSTRUMENT CO., LTD is located in Xinhe Industrial Area, Wanjiang District, Dongguan City. Also YUYANG INDUSTRIAL CO., LIMITED is our private-owned cooperation in HK. By supporting from Mechanical CNC and Software R&D core team of YUYANG Manufacturing engineering institute. YUYANG specializes in producing and R&D for flammability testing machine, textile testing machine, toys testing equipment, Footwear Testing Equipment. Continue the advanced design technology and concept, excellent technology of producing and outstanding system of quality management, YUYANG aims at "manufacture carefully, service by heart" devoting the best products, counseling and service to schools, manufacturing enterprise, and third party testing industry.

Up to today YUYANG products spread to countrywide users. We take pride in having a long list of satisfied customers, who always look up to us for their various requirements. Most of our customers are satisfied from our products and services and as a result of which, we are getting repeat orders. Some of our important customers include: SGS in France, SGS in Vietnam, SGS in China, SGS in Korea, Intertek in China, SAT in China, BACL in Shenzhen, NSF in Shanghai, ITS, BV, TUV etc. The quality proves value; the effort brings success. What your concerning is our struggling all the time...
